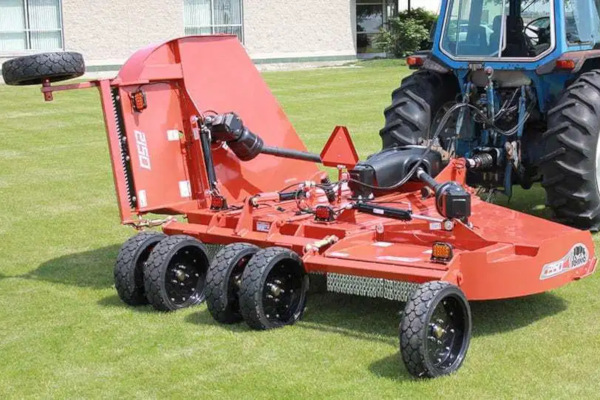

Rhino 2150

Double tap to zoom

Smooth Top and Bottom Deck Design with Dual Cut Chambers
New Composite Divider Shield
Mechanical Level Lift
Infinity Cast Carrier utilizing many of the same drive-train components as the 3150
6 Year Limited Gearbox Warranty
New Improved Tongue Design featuring Standard Clevis
CAT 5 CV Main and CAT 4 Wing Drivelines
Coil Spring Suspension
Equip your 2150 with Rhino Trax
LED Lights are Standard Equipment

Model	2150
Cutting Width	180"
Transport Width*	116''
Transport Height	75''
Overall Width*	187''
Overall Length*	172''
Cutting Height*	2"-14"
Height Adjustment	Hydraulic Cylinder
Jack Stand	Standard
Hitch	Clevis
Blade Carrier	Infinity
Blades	1/2" x 4" Paralell Lift
Blade Overlap	6"
Horsepower Required	50 HP
Gearbox Rating Divider **	160 HP
Gearbox Rating Center & Wing **	130 HP
Gearbox Oil (85W-140)	Factory Filled
Output Shaft Dia	2"
Blade Tip Speed Center 540 RPM	14,861 FPM
Blade Tip Speed 1000 RPM	15,570 FPM
Blade Tip Speed Wing 540 RPM	14,861 FPM
Blade Tip Speed 1000 RPM	15,776 FPM
Cutting Capacity	2 1/2"
Driveline Size Main	Cat 5 CV
Driveline Size Wing	Cat 4
Driveline Protection	Slip Clutch
Deck Thickness Center	10 Ga. (Top), 7 Ga. (Bottom)
Deck Thickness Wing	10 Ga. (Top & Bottom)
Side Skirt	1/4" x 12 3/8"
Tire Selections	Rhino Trax, Foam Filled, Laminated, or Pneumatic (4, 6, or 8 Tires)
Wing Lift	Mechanical Level Lift
Wing Flex (Degrees)	25° Down, 87° Up, 45° Operational
Weight (Approx.)	4,290 lbs. (w/ Single Chains & 6 Rhino Trax Tires)
Tongue Weight	1,430 lbs.
Safety Tow Chain	Standard
LED Light Kit	Standard
Safety Deflectors	Deflectors, Chains, or Combination

* Cutting height dependent on tire size
** Gearbox power rating based on actual field performance
