Rhino REVERSE REB60R
Double tap to zoom

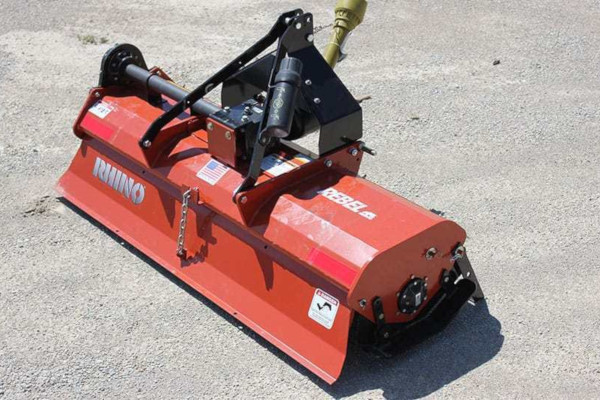

Rebel Series REVERSE REB60R
Unparalleled quality and performance
Rhino rotary tillers offer state-of-the-art design and superior features for unparalleled quality and performance in a number of applications.
Rhino’s Rebel Series tillers are built tough. Every size in this line is available in both forward and reverse tillage. Each rotor comes equipped with a hardened, “L” shaped blade. With hitches continuously welded to the mainframe, as well as slip-clutch protection on the drive train, repairs and downtime are sure to be rare!
- Less
Unparalleled quality and performance
Rhino rotary tillers offer state-of-the-art design and superior features for unparalleled quality and performance in a number of applications.
Rhino’s Rebel Series tillers are built tough. Every size in this line is available in both forward and reverse tillage. Each rotor com... + Read More
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
-
Send to a Friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Share This Product:
Features
- Six Hardened "L" Blades per Rotor Flange
- Cast Iron Gearbox Housing
- Front to Rear Hitch Points are Continuously Welded to the Mainframe
- Metal Debris Deflector (Reverse Model Only)
- CAT 1 Standard and QH (5 & 6 ft. Model Only)
- CAT 1 & 2 Standard and QH (7 ft. Model)
- Slip Clutch Driveline Protection Comes Standard
- 1/2" Steel End Plates
Specifications
| Model | REVERSE REB60R |
| Tilling Width | 59" |
| Overall Width | 66" |
| Tilling Depth (Max.)* | 7-1/2" |
| Hitch - Standard | CAT 1 |
| Hitch - Quick Hitch | CAT 1 QH |
| Knife Type | "L" |
| Number of Knives | 42 |
| Number of Flanges | 7 |
| Recommended PTO HP (Min/Max) | 25 / 45 HP |
| Rotor Speed | 211 RPM |
| Driveline Size | CAT 4 |
| Driveline Protection | Slip Clutch |
| Gearbox Housing | Cast |
| End Plate Thickness | 1/2" |
| Rotor/ Blade Rotation Dia | 17" |
| Rotor Shaft Dia | 3" |
| Rotor Drive Type | Gear Driven |
| Tine Rotation | Reverse |
| Weight (Approx.) | 683 lbs. |
