Harlo HP5000

Harlo HP5000

Double tap to zoom

Harlo HP5000



Features

Tightest Turn Radius in Industry
Industry's Fastest Lift Speeds
8 Mast Configurations
Bin Clamp Option Available
Easy Ride Accumulator Standard

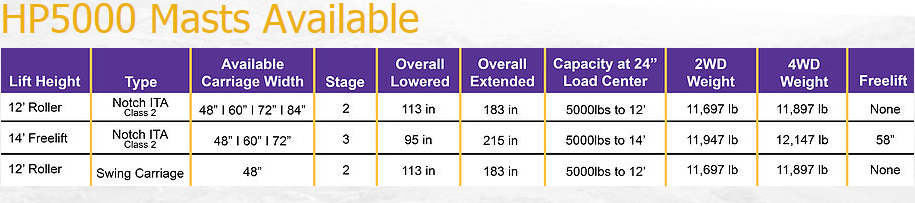

HP5000Masts

HP5000 with Cummins Engine

  • Cummins 3.8L turbo charged Diesel
  • Easy Operator Access to Engine
  • Excellent Visibility
  • 25mph max speed
  • 110hp @ 2500rpm
  • Torque: 295ft-lbs @ 1300rpm
  • Lifting Capacity up to 5000lbs
  • Lifting Height up tp 14'



HP5000 with John Deere Engine

  • John Deere 4.5L turbo charged Diesel
  • Easy Operator Access to Engine
  • Excellent Visibility
  • 24mph max speed
  • 74hp @ 2400rpm
  • Torque: 224ft-lbs @ 1600rpm
  • Lifting Capacity up to 5000lbs
  • Lifting Height up to 14'

Specifications

Specifications HP5000 with Cummins Engine HP5000 with John Deere Engine
Engine​
Emission Rating                   Tier 4 Final Tier 4 Final
Gross Power - hp (kW)            74 74
Rated Speed - rpm                 2500 2500
No. of Cylinders                 4 4
Displacement - Cu in             229 275
Drive Train
Transmission                     Synchromesh Synchromesh
Travel Speed                     24 mph 25 mph
No. of Speeds FWD 4 4
No. of Speeds REV                 4 4
Front Tire Size (4WD/2WD)        16.9 - 24 16.9 - 24
Rear Tire Size  (2WD)             11L - 16 11L - 16
Rear Tire Size  (4WD)            12 - 16.5  12 - 16.5
Hydraulic System
Main Pump Type                   Pressure Compensated Pressure Compensated
Pump Flow gallons/min 35gpm @2400 35gpm @2400
Performance
Load Center - in (mm)             24 (610) 24 (610)
Mast Tilt Backward               13* 13*
Mast Tilt Forward                 13* 13*
Side Shift              6 in
