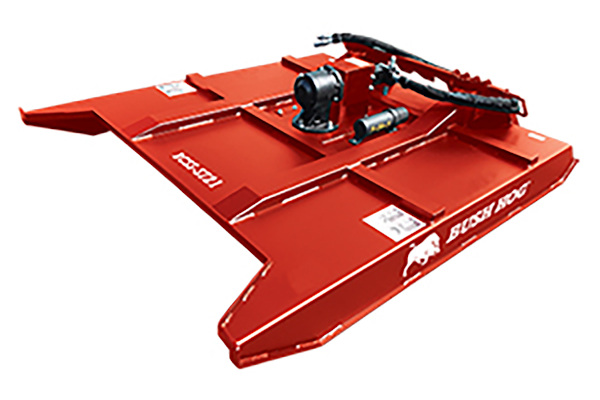

Bush Hog BCSS-S601

Bush Hog BCSS-S601

Double tap to zoom

Bush Hog BCSS-S601



Features

PERFORMANCE FEATURES

Hydraulic motor and right-angle gearbox pairing to achieve max. torque and ideal blade tip speed
Low Flow, Standard or High Flow Models (GPM)
Cutting Capacities: 3” – 5”

PRODUCT FEATURES

Solid one piece steel deck
60” and 72” Single Spindle
Standard and Heavy Duty (Push Bar Design)
High tempered steel blades
Balanced stump jumper
Welded collar to protect gearbox

Specifications

MODEL BCSS-S601
DUTY TYPE STANDARD DUTY
CUTTING WIDTH 60"
OVERALL WIDTH 61.750″
OVERALL LENGTH 72.250″
WEIGHT 840 LB.
GPM FLOW 16 - 25 GPM
CUTTING CAPACITY 4″
OPERATING PSI CONT./INT. 3,000/3,500 PSI
SPINDLE CONFIGURATION SINGLE SPINDLE
BLADES (2).500″X4.0″ HIGH STRENGTH
BLADE ROTATION COUNTER CLOCKWISE
DECK THICKNESS 1/4″ STEEL
MOTOR PROTECTION PRESSURE RELIEFS
DRIVE PROTECTION GRD-2 BOLT (SHEAR BOLT)
MOTOR/GEARBOX COUPLER MACHINED STEEL
