Bush Hog X2
Double tap to zoom
40-70 Horsepower Models X2
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
-
Send to a Friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Share This Product:
Features

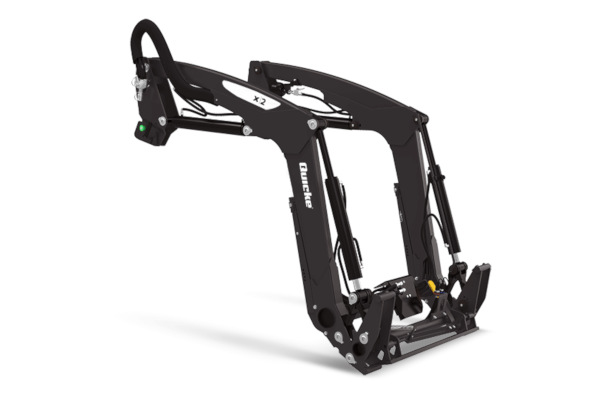

The optimum range of front loaders for tractors up to 120 hp.
With X-series we are giving you yet another first class alternative for small to medium-sized tractors. This series of front loaders combines design, performance and economy in a unique manner – so that your route to profitability will be as easy as possible.
Specifications
| Lift heights and bucket angles | |
| Maximum Lift Height - Measured at Pivot Pin (m) | 3.10 |
| Maximum Lift Height - Under Level Bucket (m) | 2.90 |
| Maximum Dump Angle at Maximum height° (Degrees) | 50 |
| Maximum Q Level angle° (Degrees) | N/A |
| Maximum Rollback Angle at ground° (Degrees) | 42 |
| Loader forces | |
| Lift Capacity to Maximum Height -800mm From Pivot Pin (kg) | 870 |
| Lift Capacity, 1,5m Height -800mm From Pivot Pin (kg) | 1210 |
| Breakout Force -800mm From Pivot Pin (kg) | 1450 |
| Rollback Force at Ground Level -800mm From Pivot Pin (kg) | 1880 |
| Reach data | |
| Clearance with bucket dumped 45 deg (mm) | N/A |
| Loader physical data | |
| Arm width (C-C) (mm) | 1040 |
| Weight - Front loader (kg) | 310 |
| Loader position | |
| Digging Depth (mm) | 150 |
| Tractor / Loader physical Data | |
| Tractor PTO HP Range (hp) | 40-70 |
| Tractor weight (max)(kg) | 3000 |
| * Varies depending on machine and implement |
