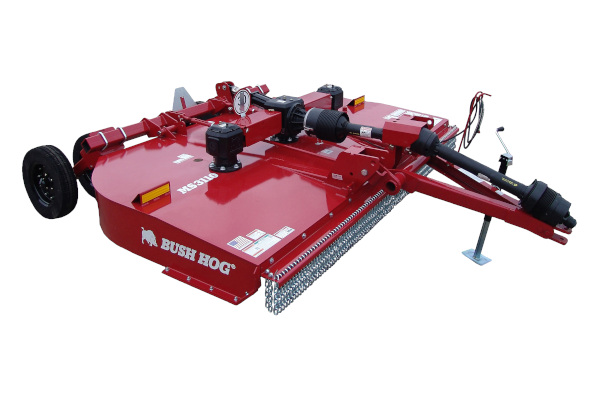

Bush Hog MS3110

Double tap to zoom

Bush Hog MS3110



Features

PERFORMANCE FEATURES

  • 10-feet, 6-inch cutting width
  • 210HP Cutting Gearboxes
  • Wide-angle constant velocity drive-shaft on pull models
  • Powerful Cat 5 drivelines on Lift and Semi models
  • Increased sideband height allows more airflow for improved cutting efficiency
  • 1/4″ x 39″ replaceable skid shoes
  • Multiple wheel selections to match your application



CONSTRUCTION FEATURES

  • Structural steel tubes and reinforced welding at all high stress points
  • Strong 7ga deck plate
  • Durable 1/4″ x 13″ sidebands
  • Pull-type axles have custom rubber isolators to reduce shock during operation & transport
  • Strong Pull-type tongue with swivel clevis rolls over uneven terrain with ease
  • Dual leveling rods maintain tension between the tongue and the axle to keep the deck level during operation
  • Lift-type axles have new rubber isolators & heavy-duty swivel caster forks
  • Cat 2 and 3 Standard and Quick Hitch on Lift models



SAFETY FEATURES

  • Shields over all cross shafts fold away for quick access to clutch or universal joints
  • Easy to access driveline to transfer gearbox shield
  • Front Single or Double Row Deflector Chains
  • Rear Metal Band or Single or Double Row Deflector Chains
  • Safety Tow Chain on Pull-Type models

Specifications

MODELS MS3110
CUTTING WIDTH 126″
CUTTING HEIGHT 1 1/2″ - 13″
CUTTING CAPACITY 3 1/2″
HITCH TYPE CAT 2 OR 3 STD & QH | SEMI-MOUNT | PULL
DECK THICKNESS 7GA
SIDEBAND THICKNESS 1/4″
SIDEBAND HEIGHT 13″
DRIVELINE SIZE CAT 5
DRIVELINE PROTECTION 4-PLATE SLIP-CLUTCH
TRANSFER GEARBOX (HP) 210
CUTTING GEARBOX (HP) 210
TRACTOR PTO SPEED 540
MINIMUM TRACTOR PTO HP 60 (PULL) | 75 (LIFT)
BLADE HOLDER ROUND PAN
BLADES 1/2″ X 4″ PARALLEL UPLIFT
BLADE TIP SPEED (FPM) 16,881
TIRES 21″ LAMINATED (LIFT) | 21″ LAMINATED, 25″ LAMINATED, 25″ FOAM-FILLED, 29″ AIRCRAFT
DEFLECTOR TYPE CHAIN/CHAIN
APPROXIMATE WEIGHT (LB.) 3,100
GEARBOX WARRANTY (YRS) 10
