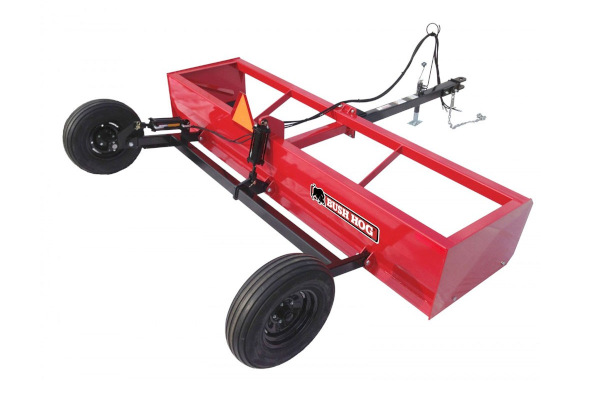

Bush Hog DSP10
Double tap to zoom
Pull Dirt Scrapers DSP10
DSP8, DSP10, DSP12 SERIES
Bush Hog’s new DSP Line of Pull-Type Drag Scrapers, with standard fixed axle or optional tilt axle, is ideal for moving large quantities of material, leveling, and finish grading. The DSP units come available in 8’, 10’ and 12’ widths. DSP scrapers equipped with the optional tilt axle can do everything the standard axle does, as well as remove material on an angle for sloping, terracing and ditching. Material can be transferred by dragging it to nearby locations and raising the scraper to deposit the load. Surfaces can be graded and leveled by scraping material from high areas and allowing accumulated material to flow under the grader blade into lower areas. The DSP scrapers are designed for 70 to 125 horsepower tractors and have replaceable wear plates on the sides. - Less
DSP8, DSP10, DSP12 SERIES
Bush Hog’s new DSP Line of Pull-Type Drag Scrapers, with standard fixed axle or optional tilt axle, is ideal for moving large quantities of material, leveling, and finish grading. The DSP units come available in 8’, 10’ and 12’ widths. DSP scrapers equipped with the optional tilt axle can d... + Read More
-
Get a Quote
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
-
Request Brochure
Request Brochure
Fields with asterisks* are required.
-
Send to a Friend
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
-
Payment Calculator
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
- Literature
Share This Product:
Features
Performance Features
- Available in 8-foot, 10-foot, and 12-foot widths.
- Optional tilt axle removes material on an angle for sloping, terracing and ditching.
- DSP scrapers are designed for 70 to 125 horsepower tractors
- Replaceable wear plates on the sides.
Specifications
| Model | DSP10 |
| Horsepower Rating | 70 to 125 |
| Transport Width | 121-inches |
| Working Width | 120 3/16-inches |
| Capacity | 2 1/4 cu. yds. |
| Weight without material in Weight Box | |
| Tilt Axle | 1645-lb |
| No Tilt Axle | 1525-lb |
| Weight of Material in Weight Box | 760-lb |
| Depth of Box | 39-inches |
| Maximum Cutting Depth | 5-inches below grade |
| Dump Clearance | 21-inches |
| Maximum Tilt Depth To the Right | 7 5/8-inches |
| Maximum Tilt angle | 3 1/2° |
| Tongue Construction | 4-inches x 4-inches x 1/4-inch tubing |
| Side Plate Construction | 3/8-inch x 24 5/16-inches high x 39 3/4inches deep |
| Moldboard Construction | 1/4-inch x 24 1/4-inches high when formed |
| Cutting Edge | 1/2-inch x 6-inches reversible & replaceable |
| Cutting Edge Reinforcement | 3-inches x 3-inches x 5/16-inch angle plus a 1/4-inch mold board = 9/16-inch at the cutting edge. |
| Tires | New 9.5l x 15 8 PLY RIB TL on Rim 5 with 5.5 BHC |
| Maximum Transport Speed | 20 MPH |
| Lift Cylinder | 3 1/2-inches x 8-inches ASAE |
| Tilt Cylinder | 3 1/2-inches x 8-inches ASAE |
