Brillion PP7

New Products / Brillion / Secondary Tillage & Seedbed Preparation / Pulverizer / PP Series, Three-Point Hitch Models / PP7

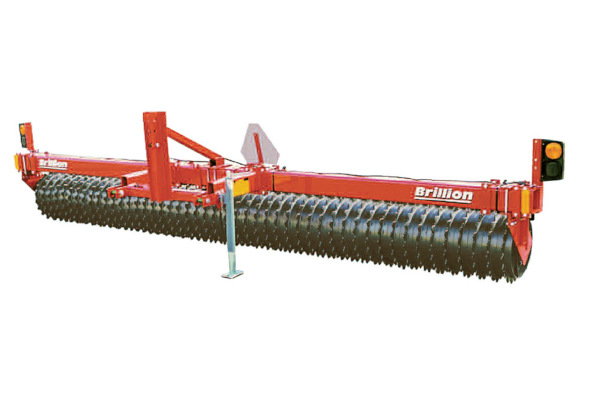

Brillion PP7

Double tap to zoom

Brillion PP7



Features

PP Series, Three-Point Hitch Models

  • Working Widths From 5’ to 20’
  • Cat. I Three-Point Hitch on 5' to 7' Models
  • Cat. I, II Three-Point Hitch on 8' to 20' Models
  • Pulverizer Wheel Styles:
    • 20" Notched Ductile Iron - 5' to 20' Models
    • 16" Notched Gray Iron - 5' to 8' Models
    • 16" Crowfoot Gray Iron - 5' to 8' Models
    • 20" Optimizer Ductile Iron - 10' to 20' Models

Specifications

Product Attributes PP7
Approximate Weight
(PPM) 16" Notched Gray Iron Wheels 943 lbs. (428 kg)
(PPD) 20" Notched Ductile Iron Wheels 853 lbs. (387 kg)
(PPC) 16" Crowfoot Gray Iron Wheels 900 lbs. (408 kg)
(PPO) 20" Optimizer Ductile Iron Wheels N/A
Working Width 7 ft. 0 in. (2.1 m)
Transport Width 7 ft. 8 in. (2.3 m)
Transport Height Dependent Upon Tractor
Overall Length 2 ft. 0 in. (600 mm)
Number of Pulverizer Wheels
(PPM) 16" Notched Gray Iron Wheels 21
(PPD) 20" Notched Ductile Iron Wheels 21
(PPC) 16" Crowfoot Gray Iron Wheels 14
(PPO) 20" Optimizer Ductile Iron Wheels N/A
Axle Size
(PPM) 16" Notched Gray Iron Wheels 4 in. (100 mm)
(PPD) 20" Notched Ductile Iron Wheels 4 in. (100 mm)
(PPC) 16" Crowfoot Gray Iron Wheels 4 in. (100 mm)
(PPO) 20" Optimizer Ductile Iron Wheels N/A
Three-Point Hitch Cat. I, II Free Link; Cat. I, II Quick Coupler
Pull-Type Hitch Optional
Scraper Kits Optional for PPM & PPD Series
S-Tine Track Remover Kit N/A
Rear Hitch N/A
LED Safety Warning Lights & SMV Emblem SMV Emblem Only
Powder Coat Paint, Red Standard
Horsepower Requirements 45 HP (33.6 kW)
Recommended Operating Speed 3 to 6 MPH (5 to 10 km/h)
